Printed magnetic steel

IntroduzioneIntroduction

This table lists the available printed magnetic steel.

Magnetic steel: type of printed magnetic steel Example: EI
Code: in this case, the quality code of the magnetic steel must be entered, making sure that it is spelt correctly, as per the material table.

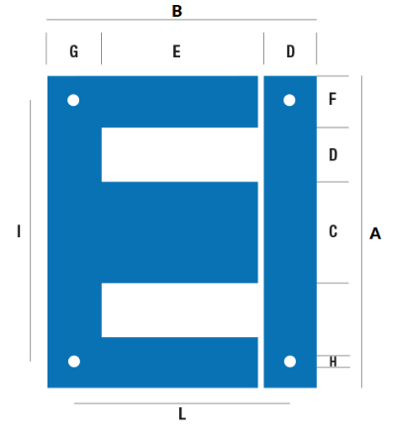

A: enter the width of the magnetic steel (Dimension A of the drawing above).
B: enter the total height of the core (Dimension B of the drawing above).
C: enter the width of the centre column (Dimension C of the drawing above).
D: enter the width of the window (Dimension D of the drawing above).
E: enter the height of the window (Dimension E in the drawing above).
F: enter the width of the side column (Dimension F in the drawing above).
Hole diameter: enter the diameter of the holes for the passage of the tie rods.
Article: to select the material, use the article code of your management system. This value will allow the applications to retrieve the description and unit cost into the table Material Unit Cost by importing the list of materials available in your warehouse.
