Eyebolts

Introduction

Eyebolts or lifting hooks are mounted on the top of elements to facilitate lifting. They are available with either an internal or externally threaded hole.

Table Ranges (Eyebolts)

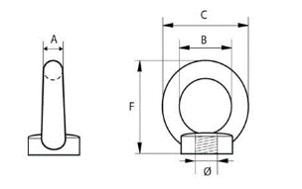

• Dimension B: internal hole diameter B. See drawing.
• Dimension C: external diameter C. See drawing.
• Thickness: ring height F. See drawingS.
• Code: it is the code that identifies the type of eyebolt. The standard eyebolt shown in the drawing above corresponds to GF. The one with a threaded hole on the outside corresponds to GM.
• Dimension M: diameter of the threaded hole. See drawing above.
• Materiale: material abbreviation. By opening the drop-down menu of the Material field, you see a list of all available materials and can choose the correct abbreviation.
• Article: to select the material, use the article code of your management system. This value will allow the applications to retrieve the description and unit cost into the table Material Unit Cost by importing the list of materials available in your warehouse.
